Description

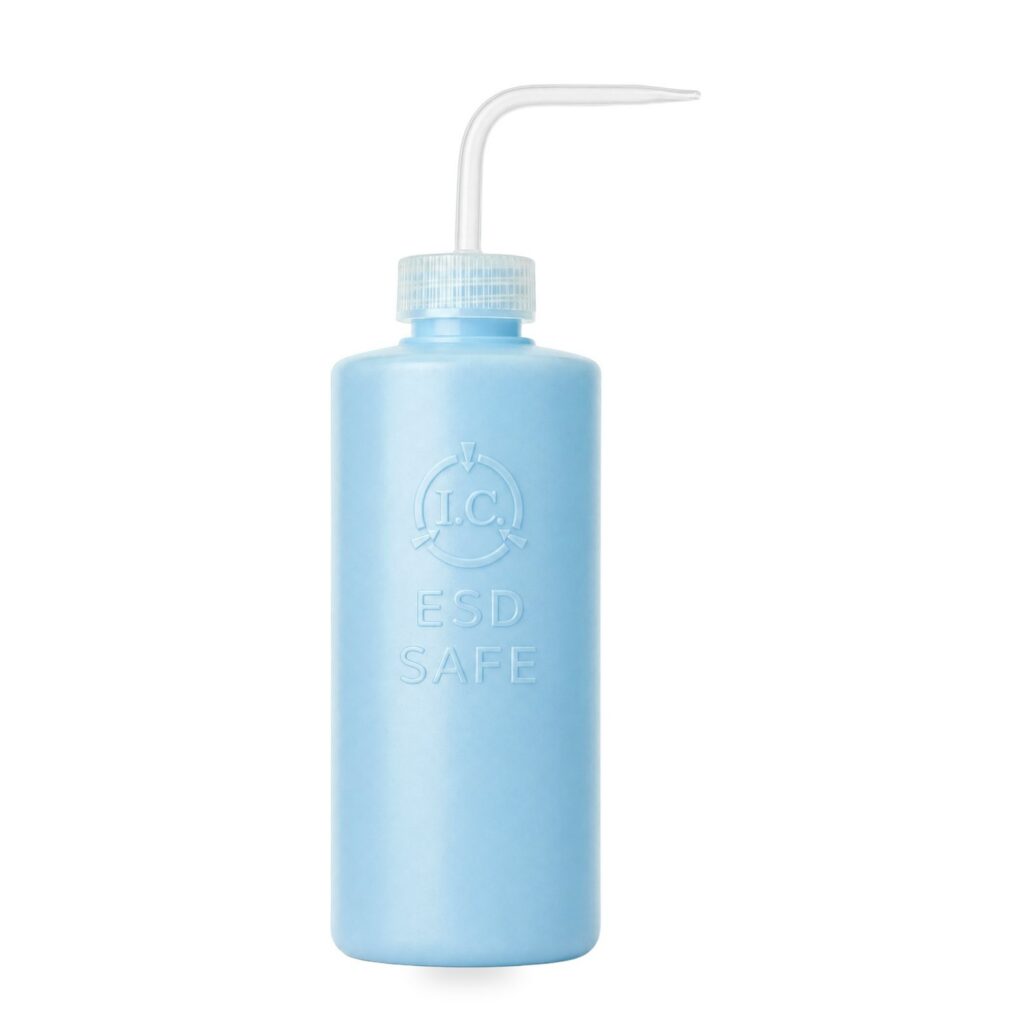

I.C. ESD Safe Wash Bottles are designed to safely cleanse your labware or equipment and store your washing solutions in any cleanroom or sterile environment. Surface resistivity of 10^9 to 10^10 Ω/sq, and an average static decay rate of 0.5 seconds at 40% RH guarantee ease of access into static sensitive environments. While an easily cut spout customizes water pressure and, along with long straw attachment, allows for functional use at any angle.
See Our ESD Bottle Chemical Resistance Chart Here
PRODUCT HIGHLIGHTS:
•Leak Free •PBDE Free •Contamination Free •Eco Safe •BPA Free •Phthalate Free •PVC Free Dishwasher Safe
DIRECTIONS FOR USE:
Unfasten nozzle from bottle to fill ESD bottle with solution. Tightly refasten the nozzle and press to prime or dispense solution.
USES:
• For use in a cleanroom or sterile environment

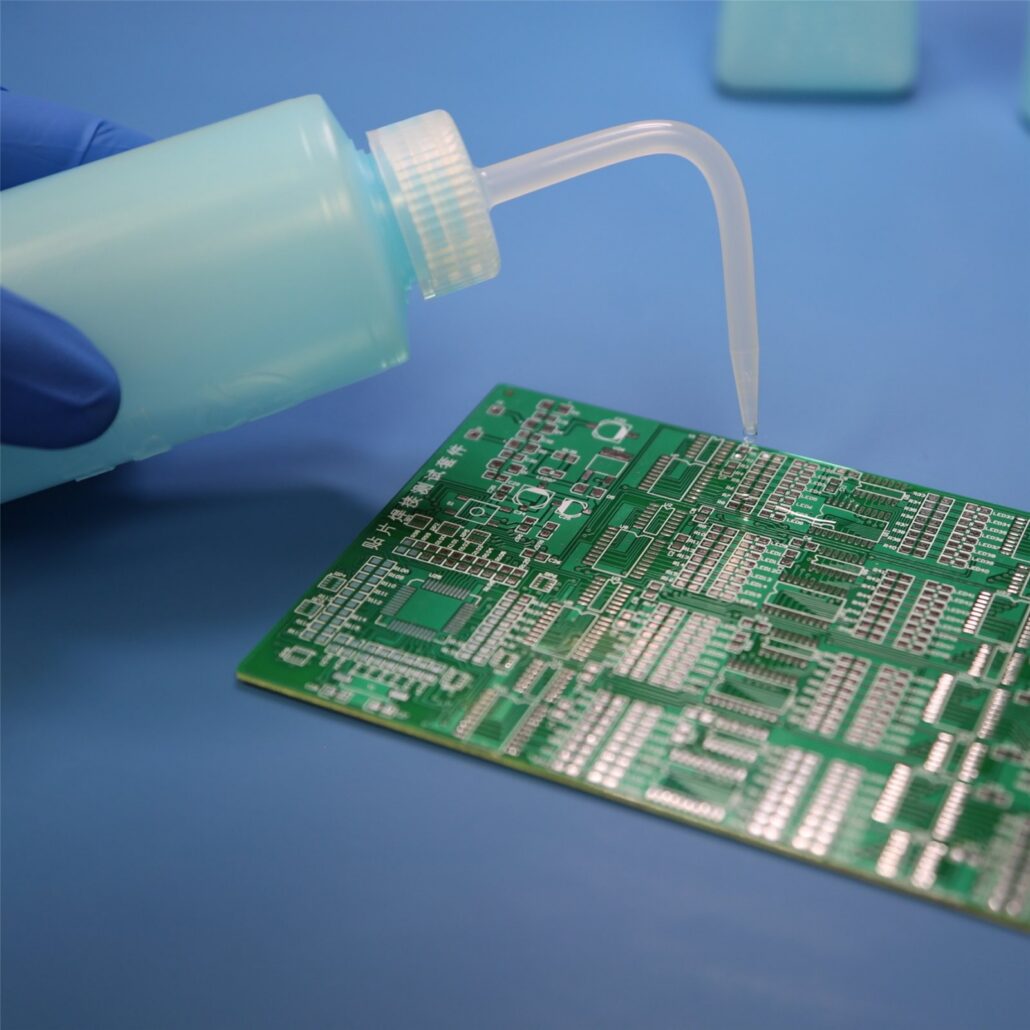

• For use cleansing or rinsing lab equipment or beakers
• For use in storing cleaning solutions or solvents
APPLICATIONS:
Electronics Manufacturing, Cleanrooms, Static-Sensitive Environments
WORKPLACE CERTIFICATIONS AND TESTING:
• Exceeds MIL-B-81705 & NFPA-56A “Electrostatic decay in accordance with Federal Test Standard 101, method 4046.”
• Tested to ESD ADV 11.21 surface resistance of Electrostatically dissipative materials between 1 x 10^4 and < 1 x 10^11
• Helps support the ESD control program requirements stated in ANSI/ESD S20.20.
• Meets EIA 625 triboelectric charge standards.
• Helps Meet ANSI/ESD S4.1
• DOD-HDBK-263 Military Spec Compliant
FEATURES AND BENEFITS:

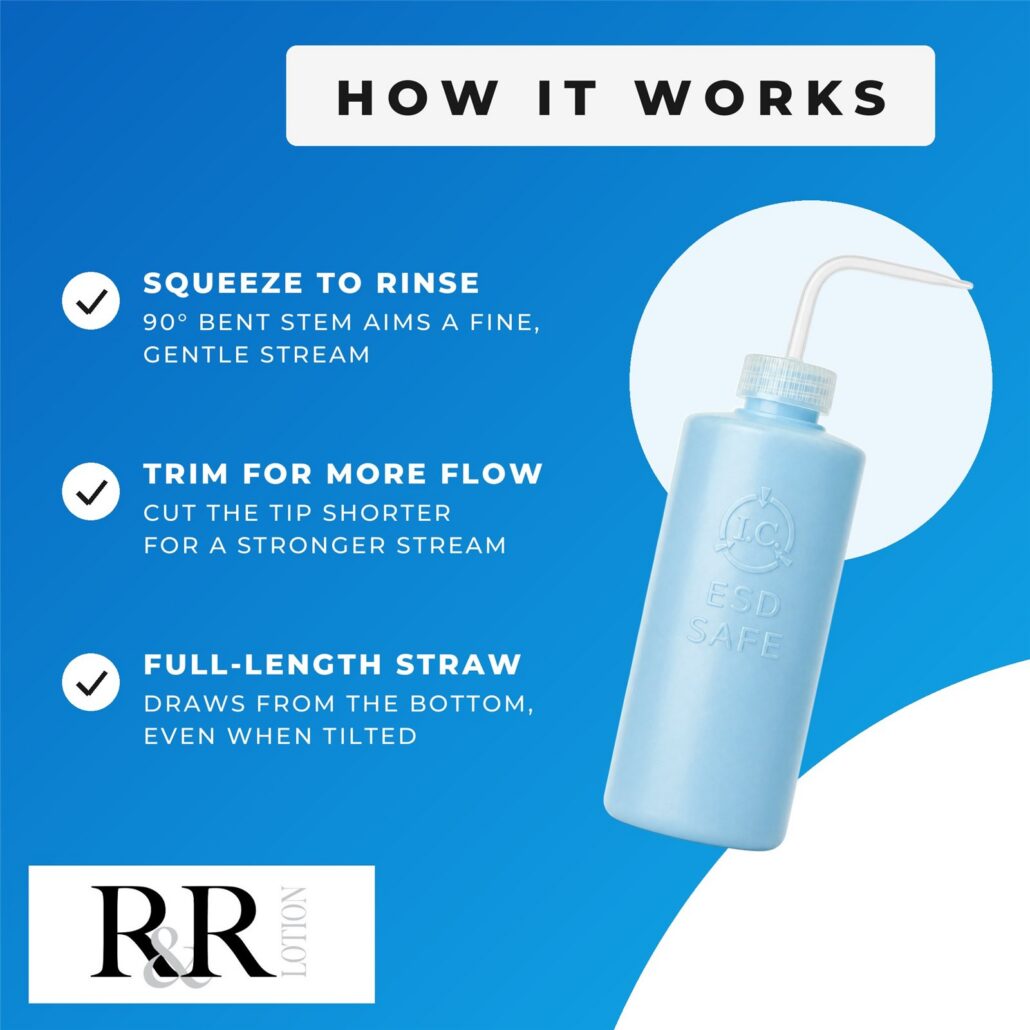

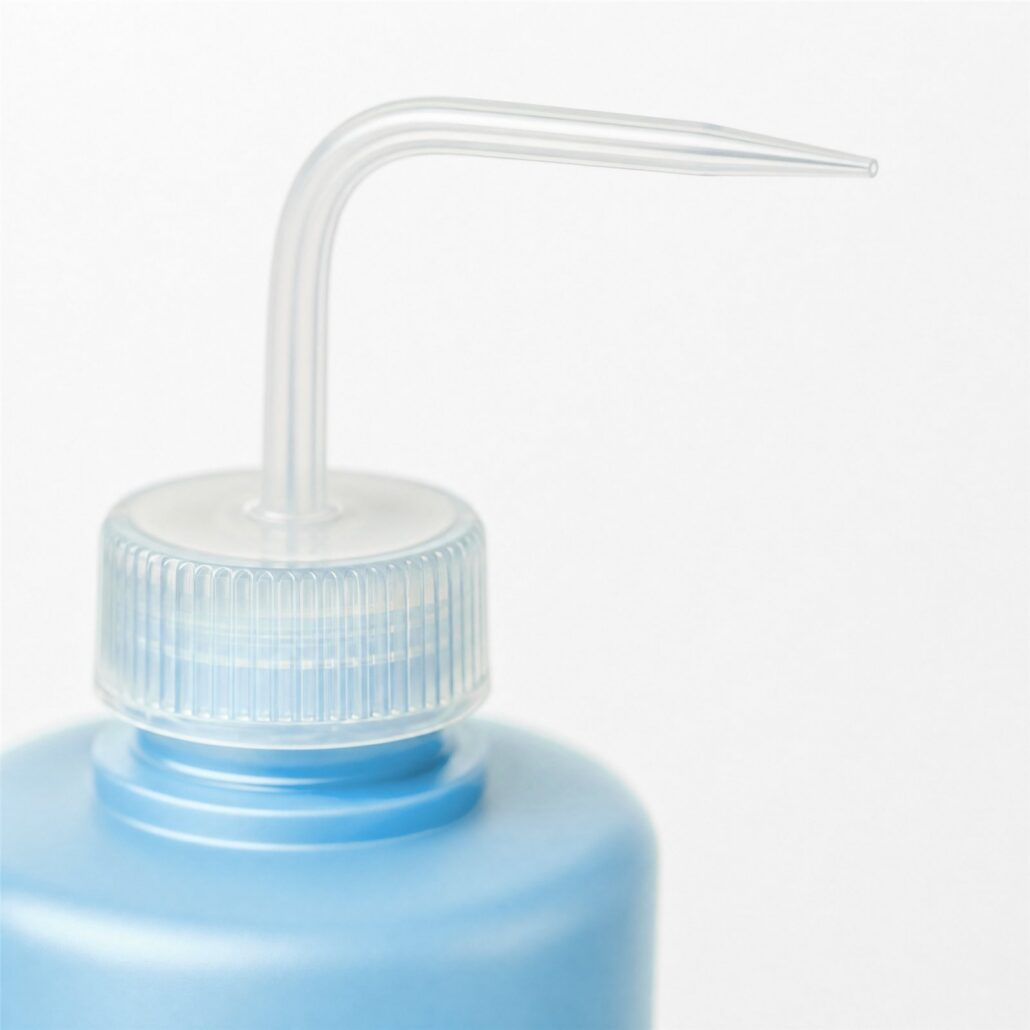

| Flow Adjustment | Easy to cut spout allows for total control of water pressure. |
| Full-Length Straw | Straw Attachment reaches the corner of bottle, leaving no solution to waste. |

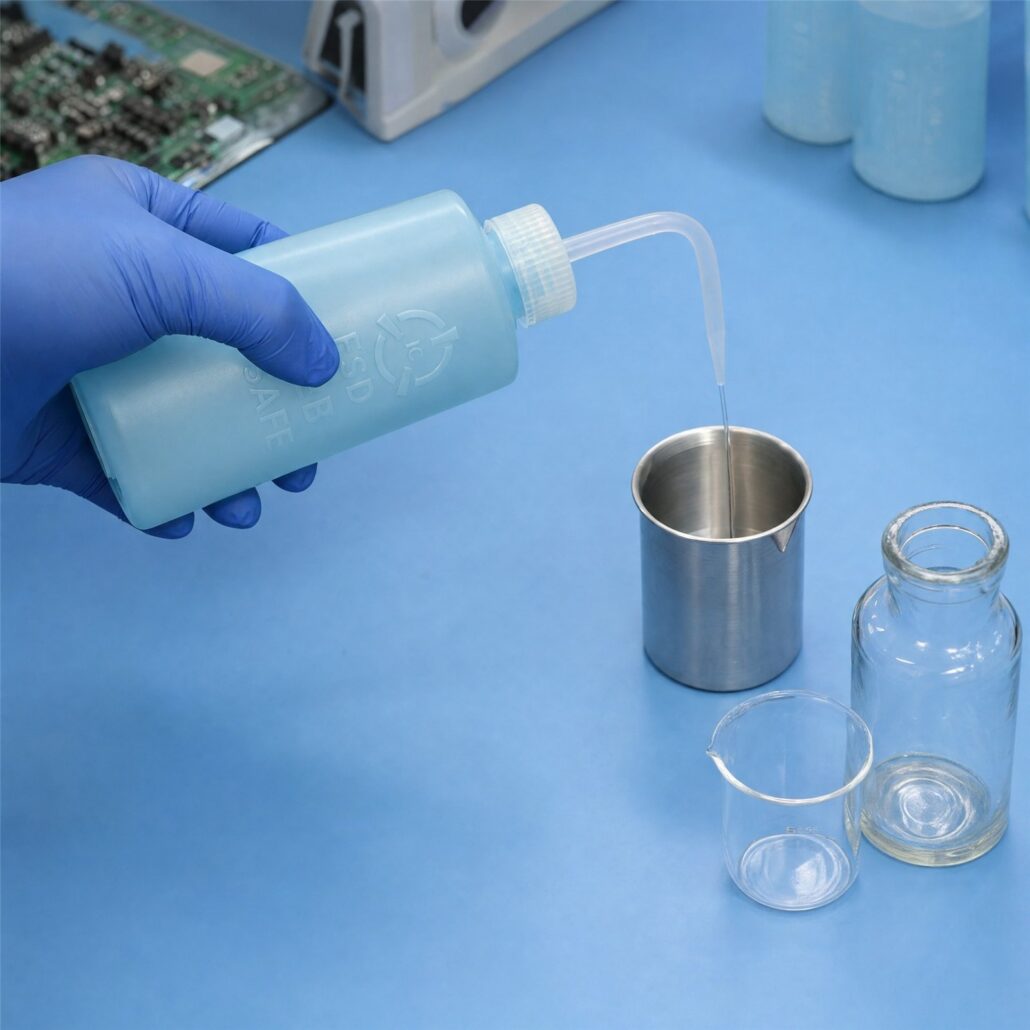

| Tilt Control | Needle-nose dispenser and straw attachment offer total control at most angles. |
| Gentle Cleanser | Water flow achieves high-pressure cleaning with a gentle, yet direct flow. |
| Limitless Accessibility | Eliminate lab restrictions by placing unsafe materials in ESD-Safe containers. |
| High Durability | MDPE is highly durable and chemical resistant. |
| Grip Right Material | Flexible material allows for precise and appropriate resistance. |
| Leak-Proof | Moldings are fitted to their matching tops and form a seal when enclosed. |
| Close Quarters | Risk-free material can be kept at reach inside of your workstation. |
| ESD Blue | Designed retaining the iconic “ESD-Safe” blue tint to be easily identifiable. |
| Easy-Spot Material | Translucent material allows for easily identifiable inner contents and levels. |
| Safer Plastic | Made with no PBDE, BPA, or other known plastic contaminants. |
| Contaminant-Free | Free of Amines, Amides, and other known antistatic additive contaminants. |
| Stainless Material | Non-stick plastic cleanses all contents and contaminants from its surface. |
| Odor Resistant | Free of trace odors or fragrances left by solvents and other chemicals. |
| Dishwasher Safe | Can be washed inside on the top rack of a dishwater for cleaning and reuse. |
| Eco-Friendly | Material is formulated to be recyclable and reusable. |
motocoder –
I use this to hold distilled water that I use to rehydrate the tip cleaning sponge on my soldering station It works great and doesn’t spill water. Very convenient.
