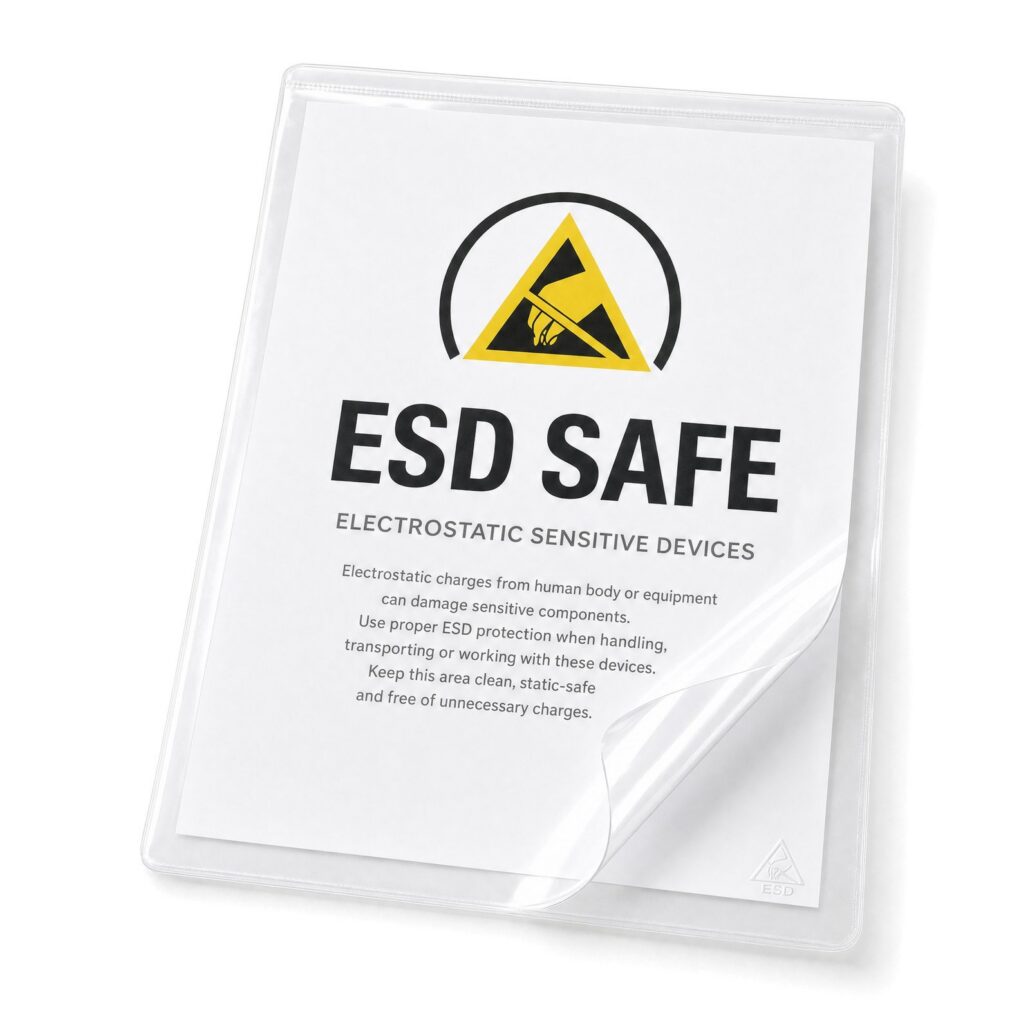

Static Dissipative Laminating Sheets

Static dissipative lamination sheet works with any standard document laminating system. Laminate paper or signs and made them ESD Safe. 100 sheets per pack. Available in 8.5×11″ & 12.25×17″

Size

Clear

Ships in 1–2 business days. Order by 2 PM Arizona time.

Request a free sample Crew, distributor or GSA pricing

Made in the USAScottsdale, AZ, since 1983
FDA registered facilityNo. 3004167955
GSA contract holderGSA MAS contract 47QSMS24D0078

SKU: SD-SHEET

Electronics technician in a blue ESD smock and wrist strap rubbing lotion into his hands at a microscope bench

Static control for paperwork

Built for signs and work instructions in the ESD area

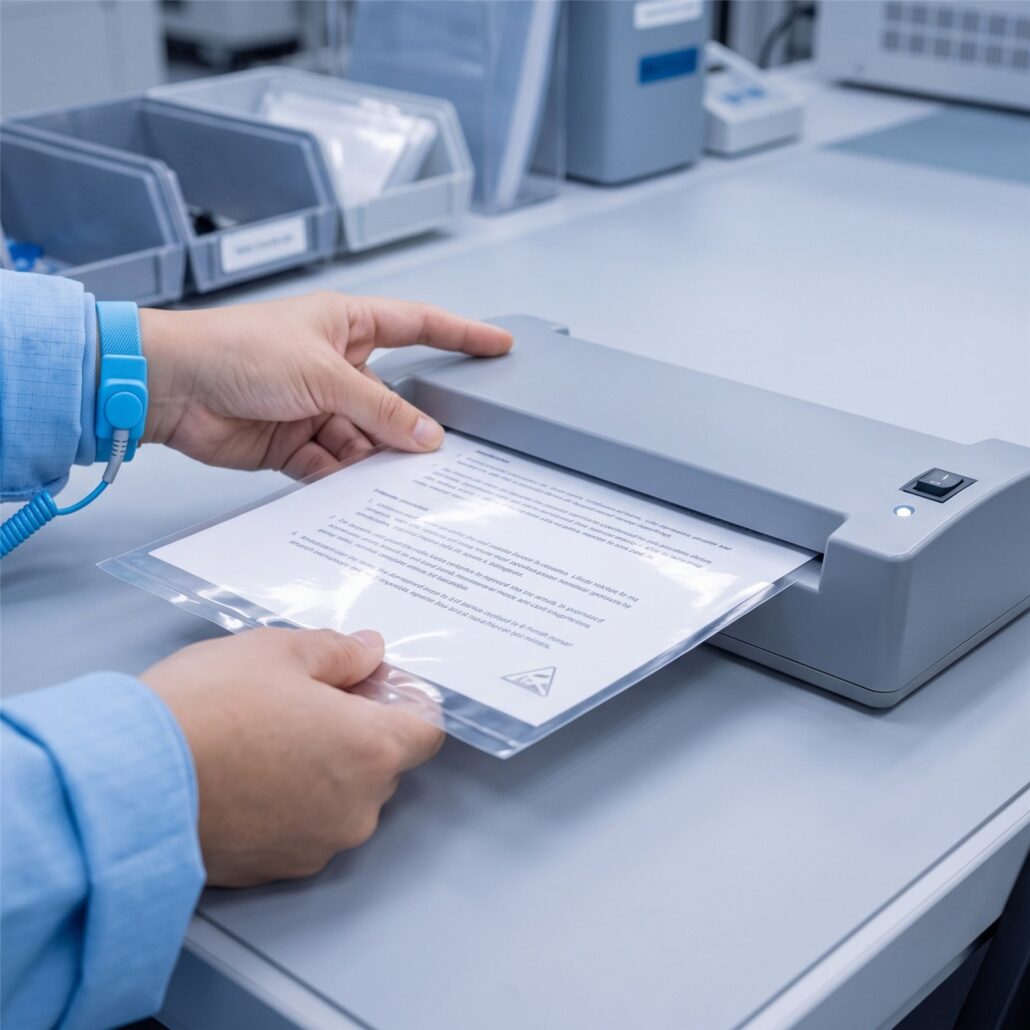

Run work instructions, travelers and signs through a standard office laminator and they come out static dissipative, ready to post or keep at the bench.

Static dissipative coatingThe coating dissipates charge from both the inner and outer surfaces.

Works with your laminatorCompatible with standard document laminating systems. Cut and trim several signs from one sheet.

Easy to spotAn embossed ESD logo sets them apart from regular laminating sheets.

At a glance

Static dissipative laminating sheets

8.5×11 · 12.25×17SD-SHEETS (8.5 × 11 in Letter) and SD-SHEETS-02 (12.25 × 17 in). 100 sheets per pack.

3 milLaminate that stays flexible. Water wipes off the non-porous surface.

10⁹–10¹¹Ω/sq surface resistivity. Average static decay 0.5 s at 12% RH.

Any laminatorWorks with standard document laminating systems.

Who uses it

Where it gets used

Electronics →

ElectronicsAssembly and rework benches

Line operator in safety glasses working lotion into her hands on the production floor

General manufacturingStatic-sensitive production

Scientist in a cleanroom gown working hand cream into her hands

Bio-scienceLabs and cleanrooms

Technician wiping down a blue anti-static bench mat with a cloth and a blue spray bottle

ElectronicsESD coordinators

Questions buyers ask

FAQ

Will it work in my laminator?

Yes. The sheets work with standard document laminating systems.

Can I cut them?

Yes. Seal and cut multiple signs or sheets from one larger sheet.

What is the surface resistivity?

Surface resistivity is 10⁹ to 10¹¹ ohms/sq, with an average static decay of 0.5 seconds at 12% RH. The sheets support an ANSI/ESD S20.20 program; they do not certify a workstation on their own.

What heat-seal settings does it need?

Most office laminators handle it. The heat-seal window is 250–375°F for 0.5–3.5 seconds at 30–70 PSI. The film is 3 mil PET with an EVA inner layer, supplied by Dou Yee.

Can I get samples, pricing or buy through GSA?

Yes. Request a sample or ask about distributor pricing. The sheets are not on our GSA schedule; our ESD bottles and dispensers are available through GSA MAS contract 47QSMS24D0078.

The details

Signs and work instructions that belong in the ESD area

I.C. Static Dissipative Laminating Sheets are for ESD coordinators, quality departments and production leads who need signs, work instructions, travelers, data sheets or calibration certificates posted in an ESD-sensitive area. Put the document between the sheets, run it through a standard office laminator, and it comes out as a static dissipative document holder.

The sheets are a heat-sealable, flexible multi-layer laminate: a static dissipative polyester (PET) outer layer over an EVA inner layer, 3 mil thick. The coating dissipates charge from both inner and outer surfaces, with a surface resistivity of 10⁹ to 10¹¹ Ω/sq and an average static decay of 0.5 seconds at 12% RH. Water wipes off the non-porous surface, the laminate stays flexible, and an embossed ESD logo sets the sheets apart from regular laminating pouches.

Choose 8.5 × 11 in Letter (SD-SHEETS) or 12.25 × 17 in (SD-SHEETS-02), 100 sheets per pack. The film is supplied by Dou Yee, and the sheets support an ANSI/ESD S20.20 program. They are not on our GSA schedule.

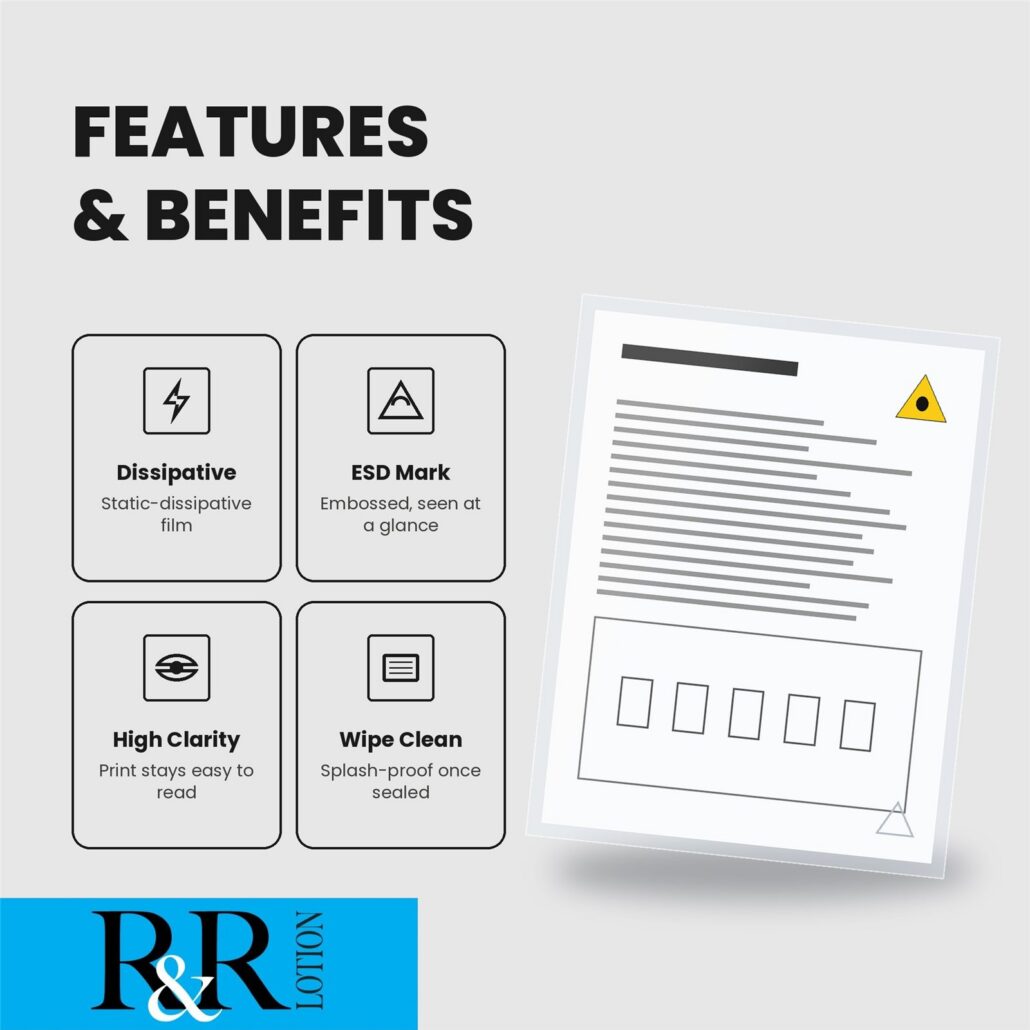

Features & benefits

2-in-1 materialBoth static resistant and static dissipating.
Hybrid protectionDissipates existing charge and shields from introduced charges.
Inside-out coatingThe static dissipative coating dissipates charge from both inner and outer surfaces.
Clear finishBrings out vivid colors and bold contrast in laminated documents.
3 mil laminateDurable while keeping the document flexible.

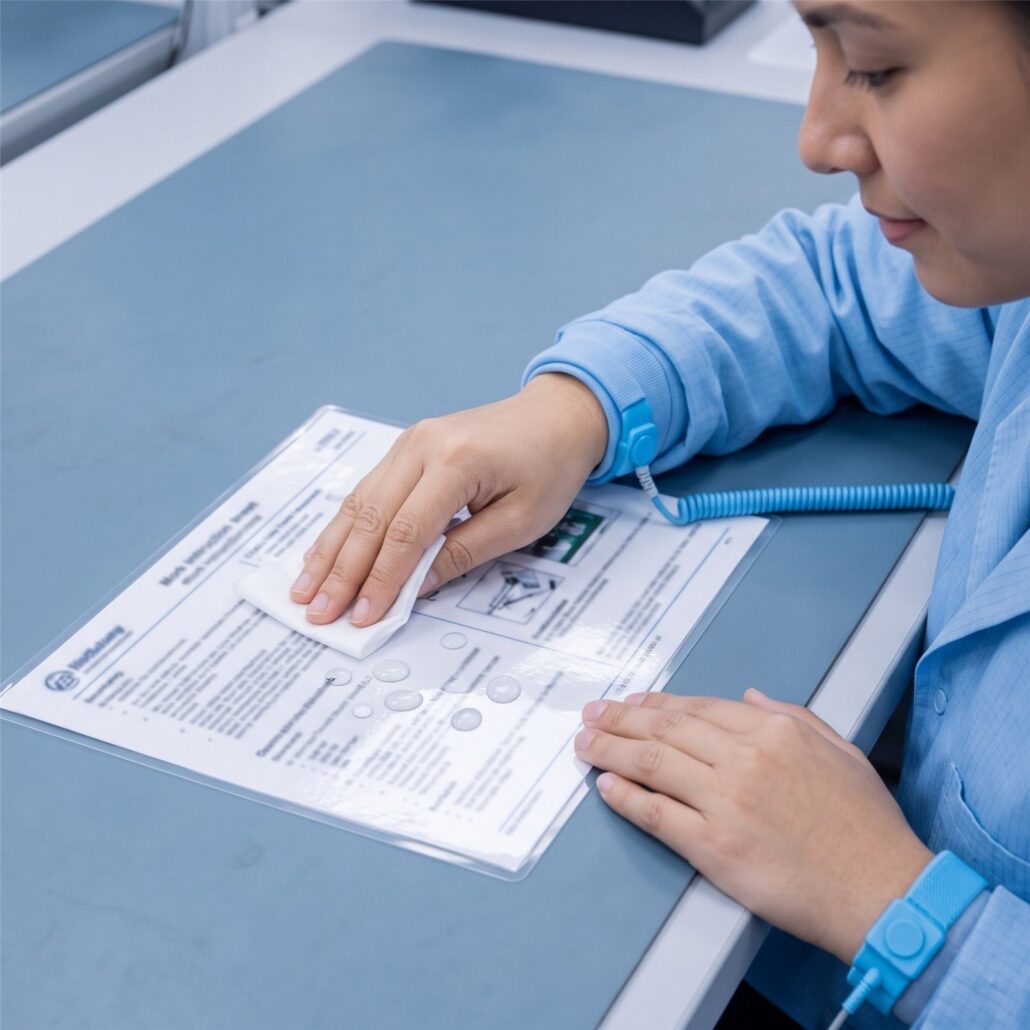

Splash-proofWater slides off the non-porous surface; easy to wipe clean.
Cut and trimSeal and cut several signs or sheets from one larger sheet.
Office laminatorsWorks with standard document laminating systems.
Easy to hangBonds well to most adhesives and tape.
Embossed ESD logoEasy to tell apart from regular laminating sheets.
RecyclableFully recyclable material.

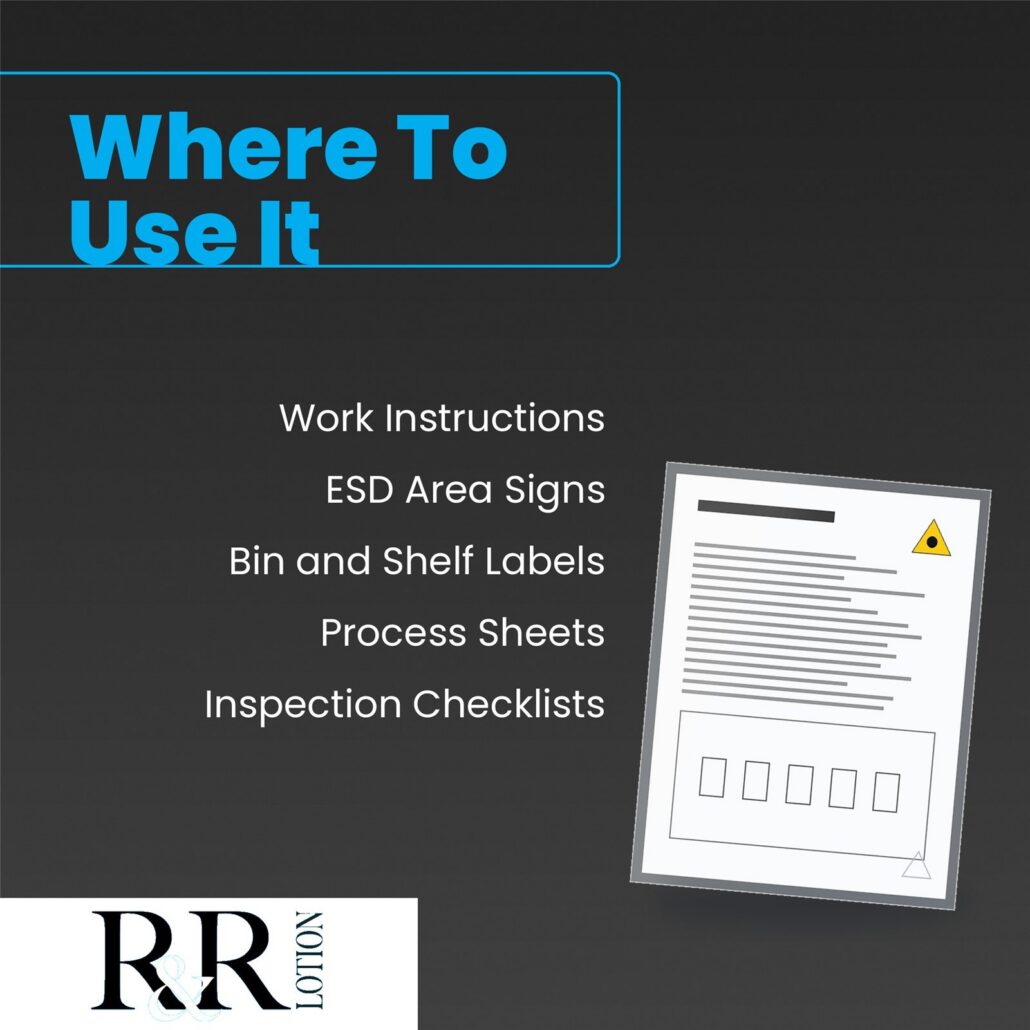

Uses (from the label)

Cleanrooms and sterile environments
Designating ESD workspaces
Preserving signs, work instructions and documents

Free ofBPAPhthalatesPVCPBDE

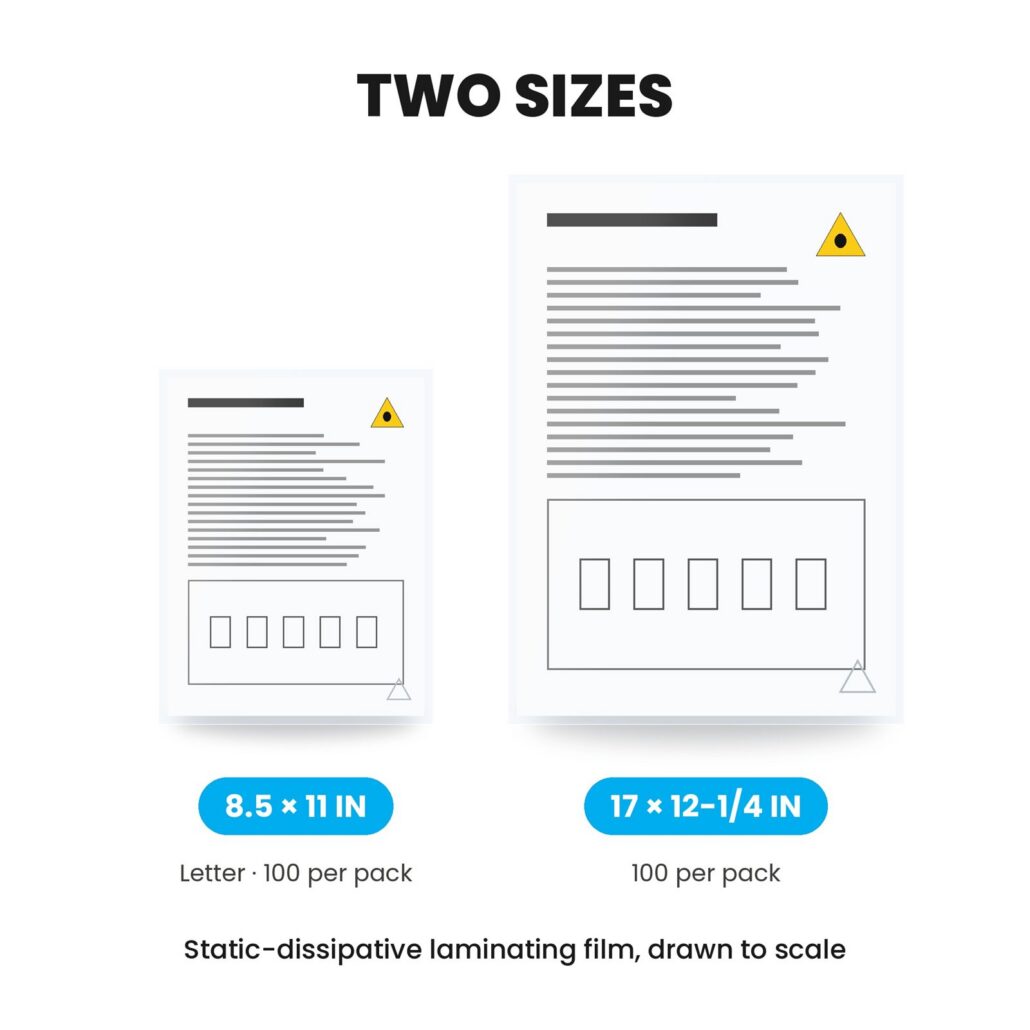

Sizes & case packs

Size	Part no.	Per case
8.5 × 11 in (Letter), 100 sheets per pack	`SD-SHEETS`	1
12.25 × 17 in, 100 sheets per pack	`SD-SHEETS-02`	1

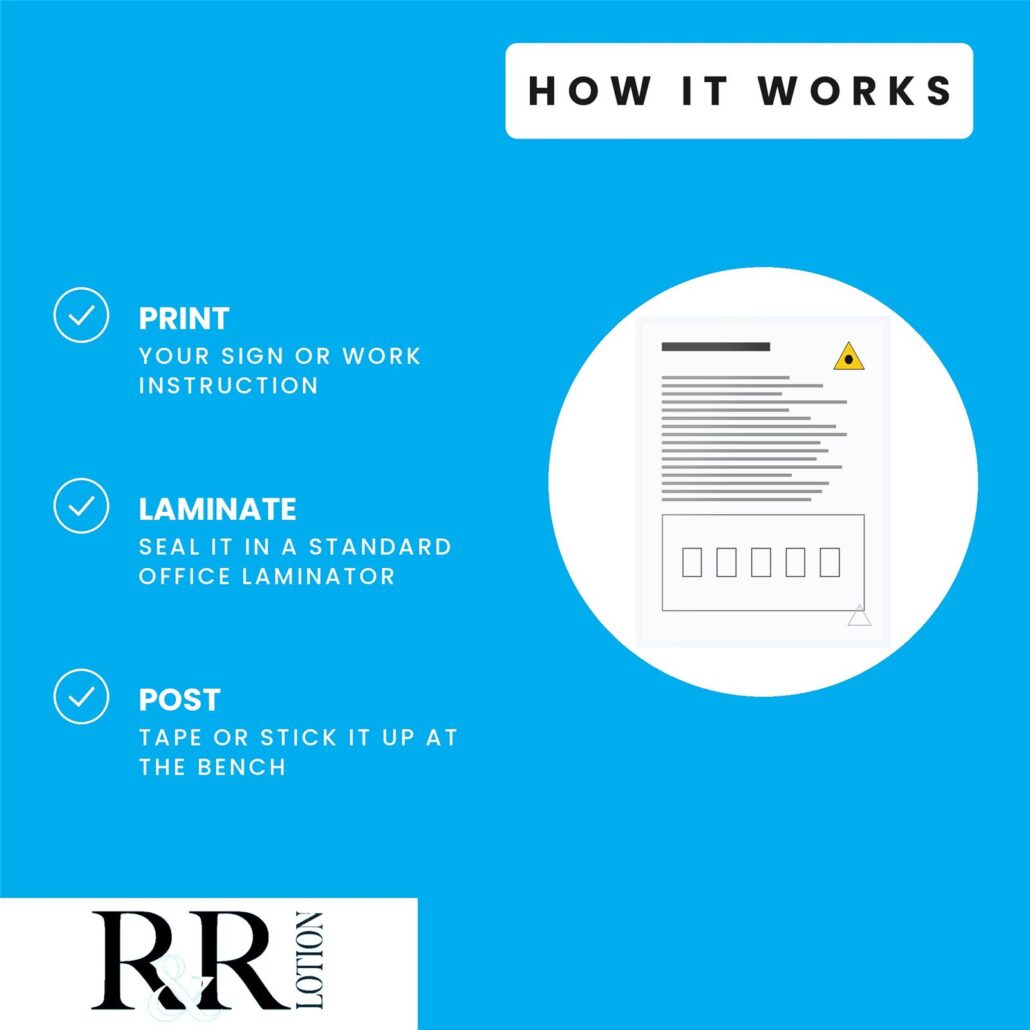

Directions for use

Use any standard document laminating system.
Place a document between the sheets.
Laminate through a heat sealer at 250–375°F for 0.5–3.5 seconds at 30–70 PSI.

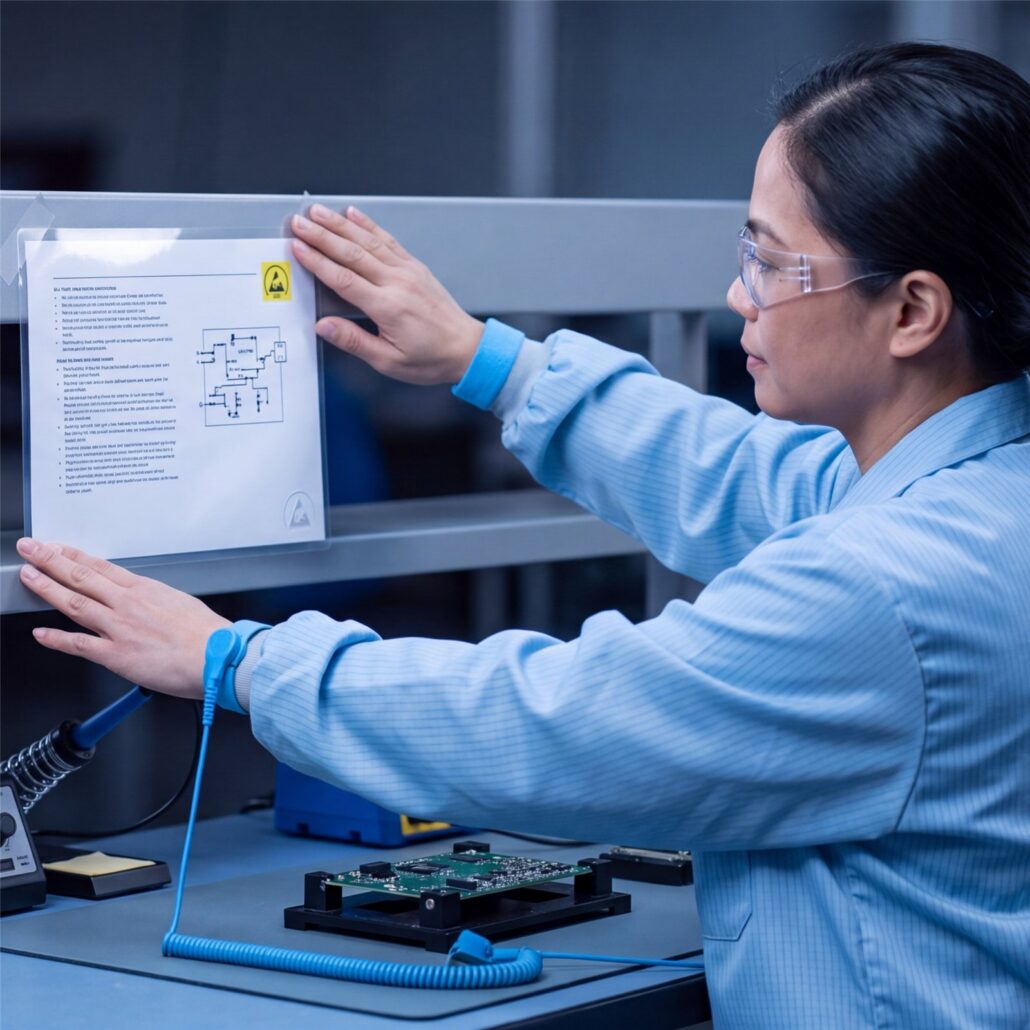

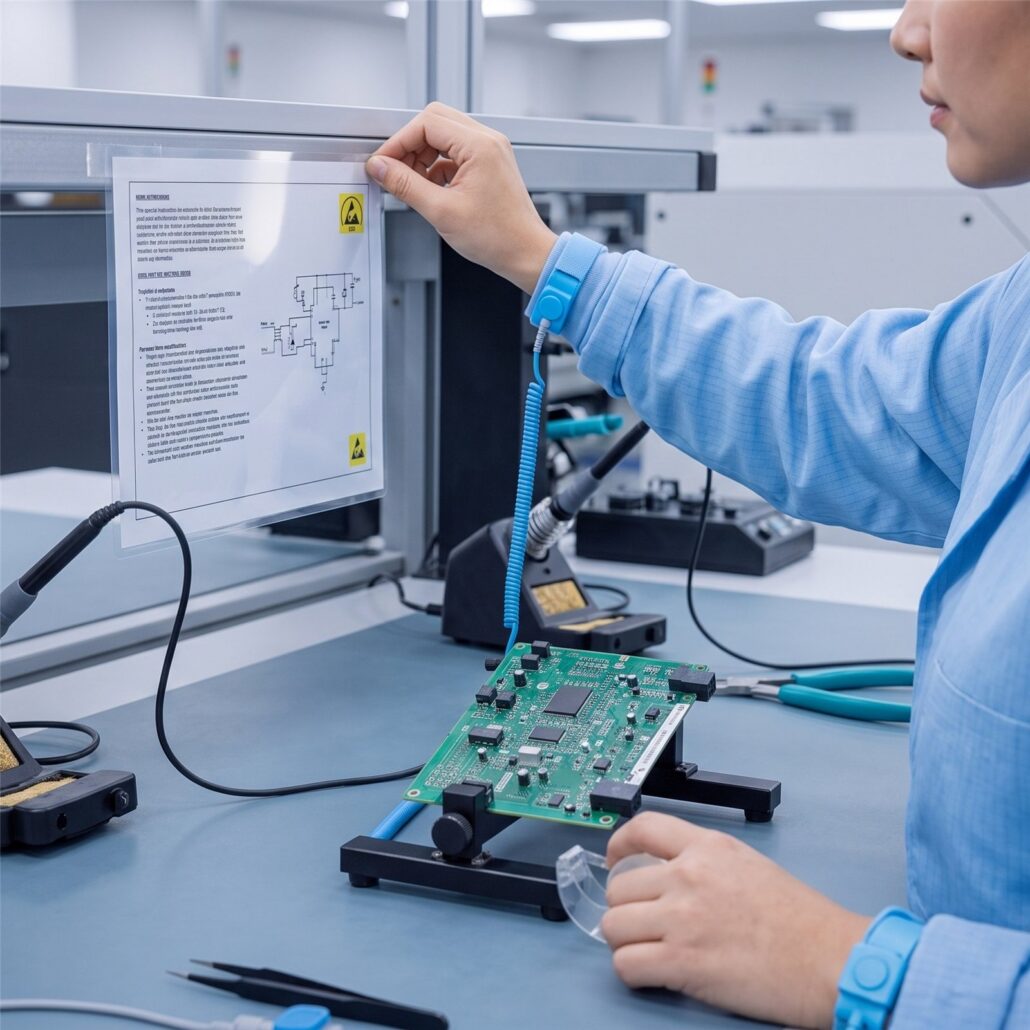

Trim to size and post in the ESD-sensitive area.

Applications

Electronics manufacturingCleanroomsStatic-sensitive environmentsQuality departmentsWarehouses

Testing on file

Outer surface resistance, ANSI/ESD STM 11.11Under 1 × 10⁹ ohms, before and after lamination.
Volume resistance, ANSI/ESD STM 11.12Under 1 × 10¹¹ ohms, before and after lamination.
Static decay, 1000 V to 0 VUnder 2 seconds (2006 TDS).

Product specs

Product type: Static dissipative laminating sheet (hardware)
Construction: Outer layer static dissipative PET; inner layer EVA (PET 95%, EVA 5%)
Thickness: 3 mil (80 micron)
Grammage: 95 g/m²
Elongation: MD 161%, TD 120%
Surface resistivity: 10⁹ to 10¹¹ Ω/sq
Static decay: 0.5 s average at 12% RH
Heat seal: 250–375°F, 0.5–3.5 s, 30–70 PSI
ESD program: Supports an ANSI/ESD S20.20 program; does not certify a workstation on its own
Standards (per TDS): Exceeds MIL-B-81705 and NFPA-56A (FTMS 101, Method 4046); tested to ESD ADV 11.21; meets EIA 625; helps meet ANSI/ESD S4.1; DOD-HDBK-263
Supplied by: Dou Yee, for R&R Lotion, Scottsdale, AZ
SDS: ESD Laminating Sheet SDS, rrlotion.com/msds/
