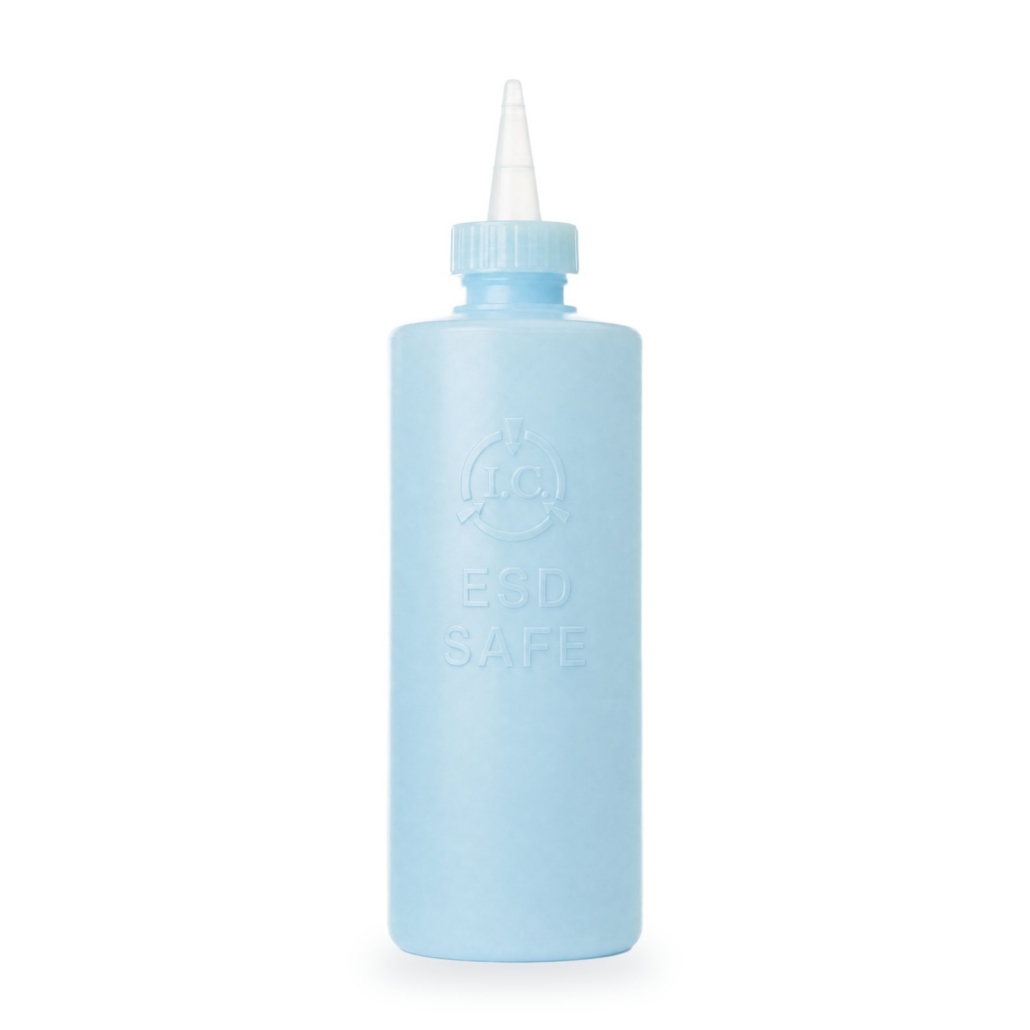

I.C. ESD Safe Water Bottle

All of our Clean Room blue static dissipative solvent containers have an average surface resistivity of 10^9 to 10^10.

Size

Clear

Ships in 1–2 business days. Order by 2 PM Arizona time.

Request a free sample Crew, distributor or GSA pricing

Government buyer? Buy on GSA Advantage → MAS contract 47QSMS24D0078

Made in the USAScottsdale, AZ, since 1983
FDA registered facilityNo. 3004167955
GSA contract holderGSA MAS contract 47QSMS24D0078

SKU: WB-ESD

Row of blue wash bottles with bent stems on a lab bench, pipettes behind

Static control at the bench

Built for a precise rinse

A blue bottle with a Yorker (cone) top for a fine, high-pressure rinse of labware. Cut the spout to set the pressure, and keep it on the ESD bench.

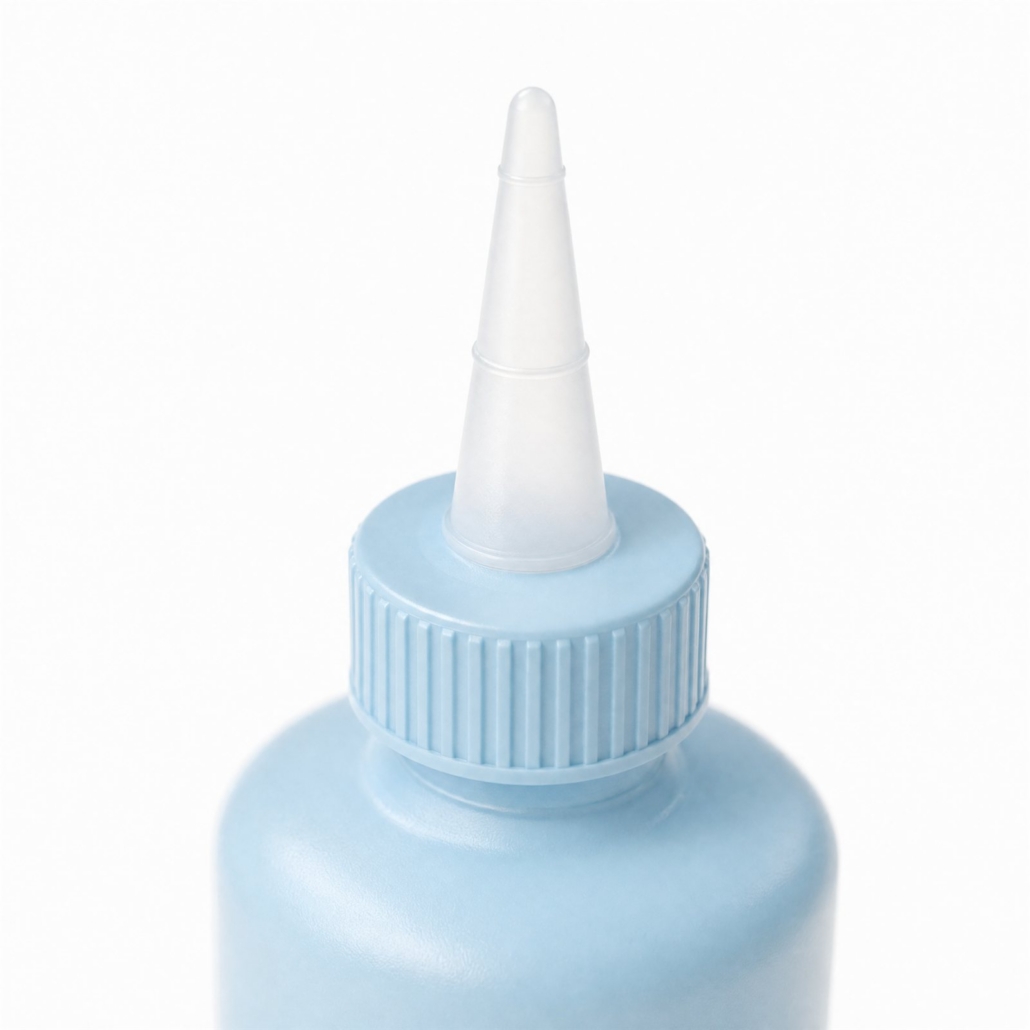

Yorker cone topA fine-tip nozzle for precise rinsing.

Set your pressureThe spout is easy to cut, so you can customize the water pressure up to a high-pressure clean.

Static dissipativeAverage surface resistivity of 10⁹ to 10¹⁰ ohms/sq, in translucent ESD blue so you can see what is inside.

At a glance

Water bottle

8 · 16 ozWB-8-ESD and WB-16-ESD with a Yorker (cone) top. Case of 50.

MDPETranslucent ESD blue, molded with an antistatic additive free of amines and amides

10⁹–10¹⁰Ω/sq average surface resistivity. Average static decay 0.5 s at 40% RH.

SolventsSeven-day exposure to TCE, MEK and IPA: no color or physical change. See the ESD Bottle Chemical Resistance Chart.

Who uses it

Where it gets used

Bio-science →

Bio-scienceLab rinse stations

Electronics technician in a blue smock and wrist strap inspecting circuit boards under a microscope

ElectronicsAssembly and rework benches

Line operator in safety glasses working lotion into her hands on the production floor

General manufacturingStatic-sensitive production

Cleanroom technician in a hooded suit, safety glasses and wrist strap dispensing from a small bottle at an electronics bench

Bio-scienceCleanrooms

Questions buyers ask

FAQ

Is this a drinking bottle?

No. It is a squeeze bottle for cleansing or rinsing lab equipment and beakers and for storing washing solutions. For drinking, see the 32 oz ESD sports bottle.

Water bottle or wash bottle?

The water bottle has a Yorker (cone) top for a fine, high-pressure stream. The wash bottle has a 90-degree bent stem and a long straw.

How do I use it?

Unfasten the nozzle, fill the bottle with solution, refasten tightly, then tilt and squeeze to dispense.

What makes it static dissipative?

It is molded from MDPE with an antistatic additive that contains no amines or amides. Average surface resistivity is 10⁹ to 10¹⁰ ohms/sq, with an average static decay of 0.5 seconds at 40% relative humidity. It supports an ANSI/ESD S20.20 program; it does not certify a workstation on its own.

Why does a bottle need to be ESD safe?

An ordinary plastic bottle can charge up when it’s handled or squeezed, then discharge into a sensitive part. A static-dissipative bottle bleeds the charge off, so it can sit in the protected area.

What else belongs on an ESD workbench?

A grounded dissipative mat, wrist-strap grounding, ESD-safe containers and dispensers, and a topical antistat for items that can’t be grounded. See our ESD workbench checklist.

Can I get samples, pricing or buy through GSA?

Yes. Request a sample, ask about distributor and case pricing, or buy WB-8-ESD and WB-16-ESD through GSA MAS contract 47QSMS24D0078.

The details

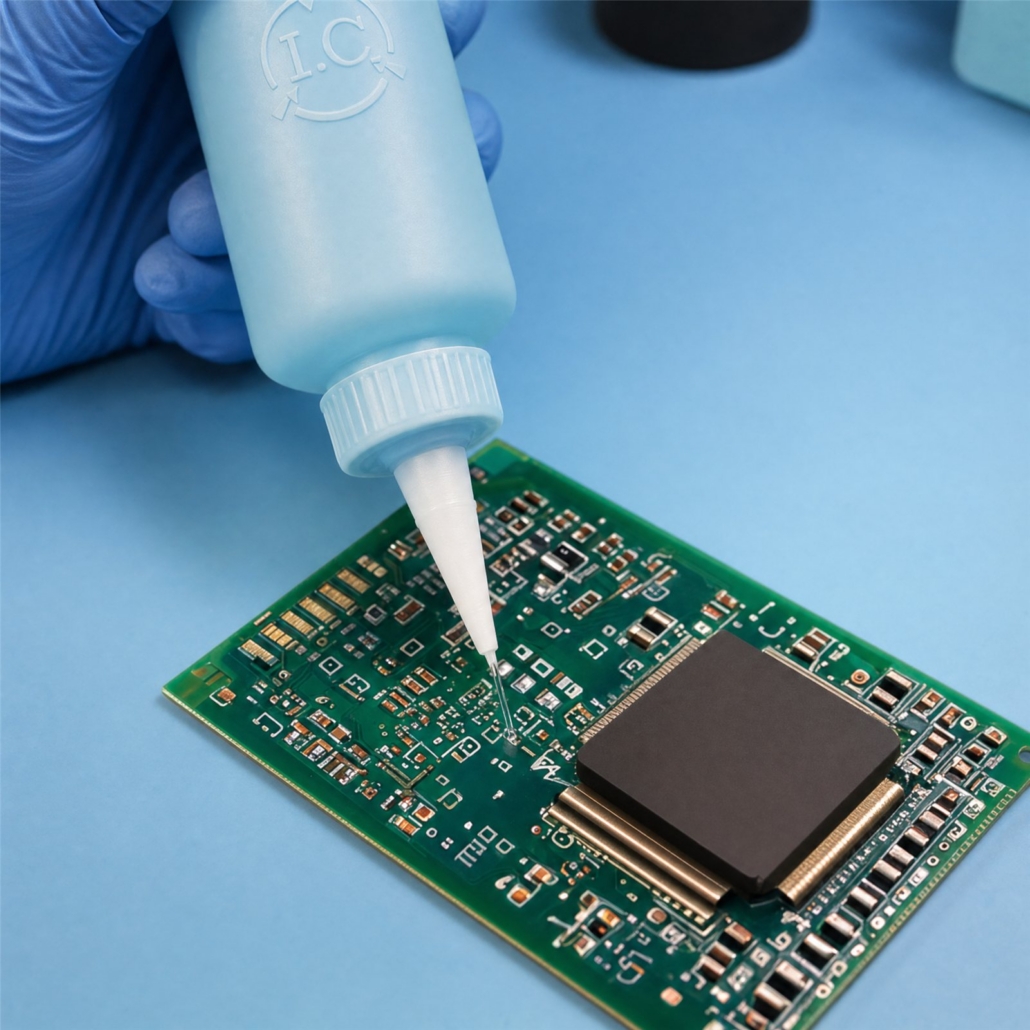

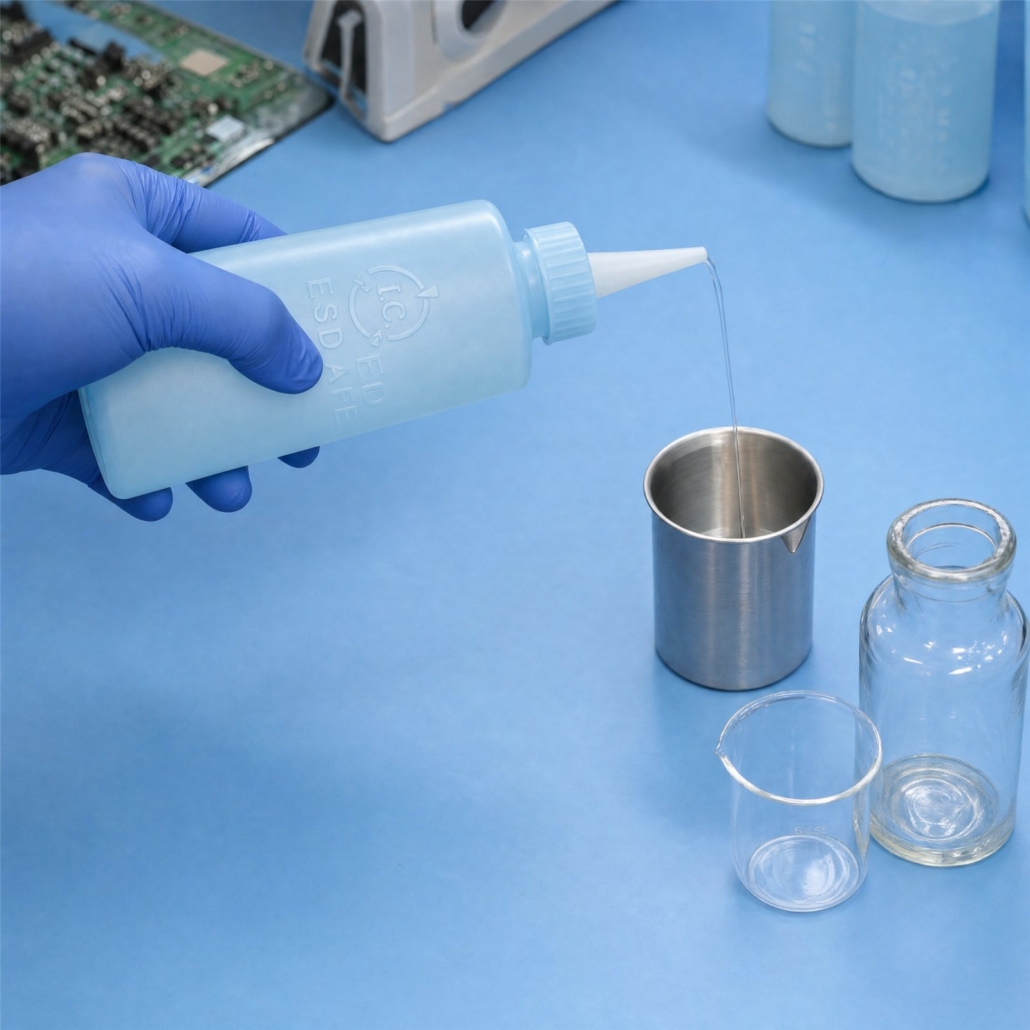

A fine, precise stream for rinsing labware

I.C. ESD Water Bottles are squeeze bottles for rinsing labware, beakers and equipment, and for storing washing solutions, in cleanrooms, labs and static-sensitive work areas. The Yorker (cone) top gives a fine, precise stream; they are not drinking bottles.

The spout is easy to cut, so you can set the water pressure up to a high-pressure clean. The bottle is static dissipative, with an average surface resistivity of 10⁹ to 10¹⁰ Ω/sq and an average static decay of 0.5 seconds at 40% RH, and its antistatic concentrate contains no ethoxylated tertiary amine.

Choose 8 oz (WB-8-ESD) or 16 oz (WB-16-ESD), 50 per case. Both are on GSA MAS contract 47QSMS24D0078. I.C. ESD bottles are molded from MDPE compounded with an ESD additive that gives them their blue tint and static dissipative property, and they are supplied by R&R Lotion of Scottsdale, Arizona, since 1983.

Features & benefits

Cut-to-fit spoutCut the spout to set the water pressure.
Precision streamThe fine-tip Yorker nozzle gives a precise stream.
High-pressure cleanSqueeze for a high-pressure flow for thorough rinsing.
Gentle, direct rinseA gentle yet direct flow.
Static dissipativeAverage surface resistivity of 10⁹ to 10¹⁰ Ω/sq, with an average static decay of 0.5 seconds at 40% RH.
Supports an S20.20 programSupports an ANSI/ESD S20.20 program. The bottle does not certify a workstation on its own.
Amine and amide freeThe antistatic additive contains no amines, amides or ethoxylated tertiary amine, the agent used in many other antistatic bottles.
Durable MDPEMedium-density polyethylene is durable and chemical resistant.
Grip-right materialFlexible walls give precise, even resistance in the hand.
Leak-proof fitEach molding is fitted to its matching top and seals when closed.
Into the ESD areaBring liquids and supplies into static-sensitive areas in a static dissipative container, and keep them within reach at the workstation.
ESD blue, translucentThe ESD blue tint is easy to spot, and the translucent wall shows contents and fill level.
Clean plasticMade with no BPA, PBDE, phthalates or heavy metals.
Non-stick surfaceContents release cleanly from the plastic surface.
Odor resistantDoes not hold trace odors or fragrances left by solvents and other chemicals.
Top-rack washableWash on the top rack of a dishwasher and reuse.
RecyclableThe material is formulated to be recyclable and reusable.

Uses (from the label)

Cleanrooms and sterile environments
Cleansing or rinsing lab equipment and beakers
Storing cleaning solutions or solvents

Free ofBPAPhthalatesPVCPBDEHeavy metalsAmines and amides

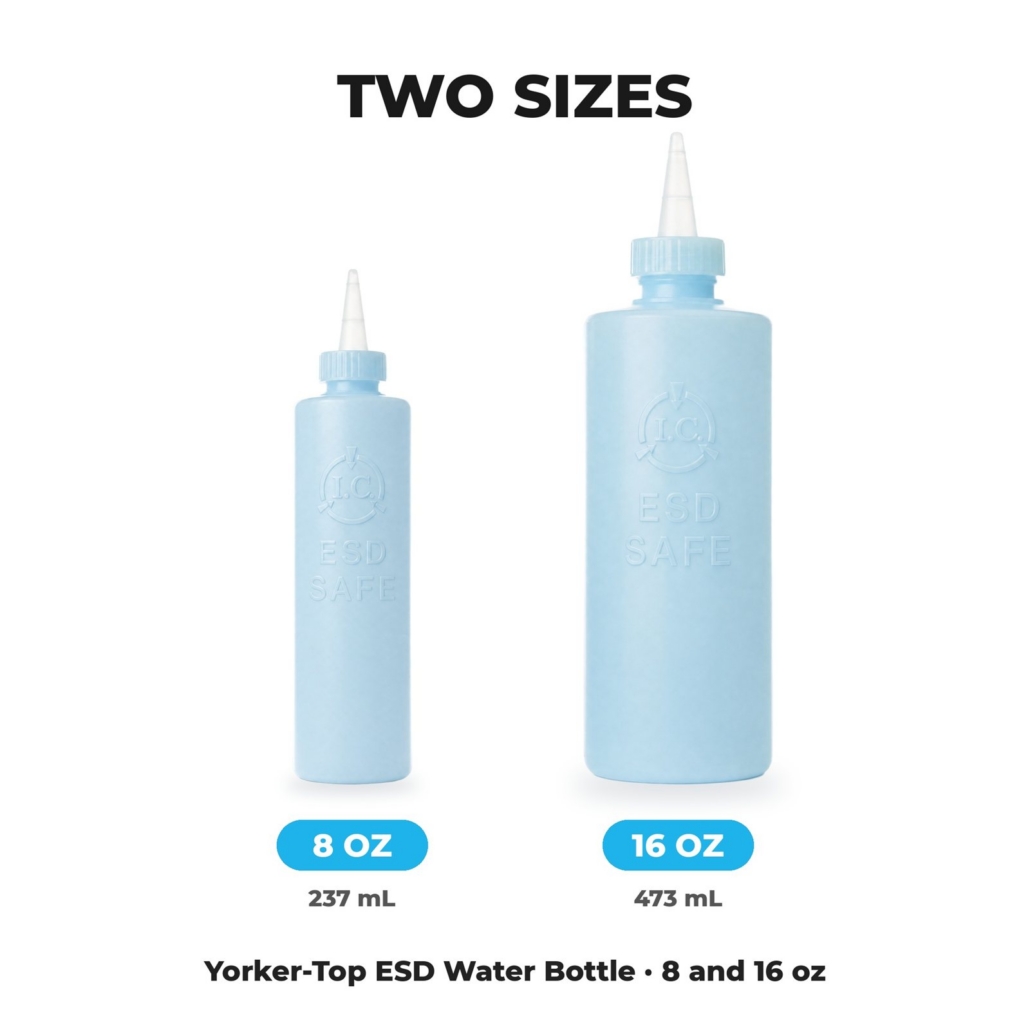

Sizes & case packs

Size	Part no.	Per case
8 oz water bottle, Yorker (cone) top	`WB-8-ESD`	50
16 oz water bottle, Yorker (cone) top	`WB-16-ESD`	50

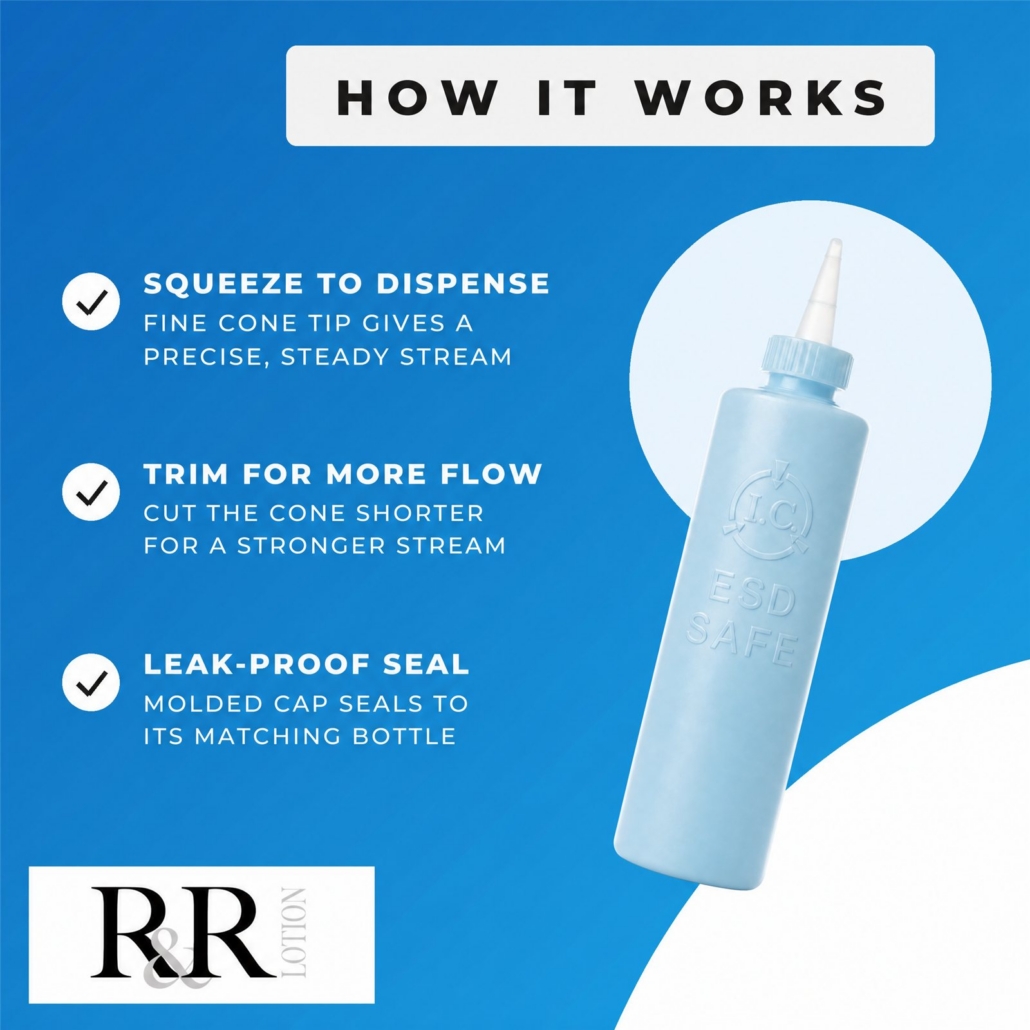

Directions for use

Unfasten the nozzle from the bottle to fill the ESD bottle with solution.
Tightly refasten the nozzle, then tilt and squeeze the bottle to dispense solution.

Applications

Electronics manufacturingCleanroomsStatic-sensitive environmentsSemiconductor and quality labsBio-science labsAerospace and defense

Testing on file

Static decay, 5 kV at 40% RHAverage 0.05 s to the 1% cutoff (min 0.04 s, max 0.07 s); 0.03 s average to 10%.
Surface resistivity, ASTM D2571.97 × 10¹⁰ Ω/sq average at 100 V and 40% RH.
Surface resistance, 100 V at 40% RH5.51 × 10⁸ Ω average (1% cutoff).
Static decay, packaging material5 kV at 15% RH: PVC sleeve 0.35 s, PE foam 0.17 s, PS foam 0.17 s.
Solvent residue, seven-day exposureTCE, MEK and IPA: no color or physical change; water pH unchanged (about 5.9).
Electro-Tech Systems, 2015Surface resistivity at 40% RH (ASTM D257 / ESD S11.11) in the static dissipative range; static decay at 12% RH (Mil-Std-3010C Method 4046) to the 1% cutoff in about 0.01 s.

Product specs

Product type: Static dissipative bottle (hardware)
Material: MDPE with an antistatic additive (amine and amide free)
Color: ESD blue, translucent
Surface resistivity: 10⁹ to 10¹⁰ Ω/sq (average)
Static decay: 0.5 s average at 40% RH
ESD program: Supports an ANSI/ESD S20.20 program; does not certify a workstation on its own
Standards (per TDS): Exceeds MIL-B-81705 and NFPA-56A (FTMS 101, Method 4046); tested to ESD ADV 11.21; meets EIA 625; helps meet ANSI/ESD S4.1; DOD-HDBK-263
Food-contact material: MDPE and additive comply with 21 CFR 177.1520, 178.2010, 178.3297 and 178.3120
Chemical compatibility: See the ESD Bottle Chemical Resistance Chart, rrlotion.com/esd-bottle-chemical-resistance-chart/
Flammable liquids: Not ATEX rated
Regulatory lists: Prop 65, TSCA, SARA, REACH, RoHS: no known substances
Shelf life: At least 24 months from manufacture. Some ESD bottles degrade over time depending on the solvent and frequency of use.
Cleaning: Top rack of a dishwasher
SDS: ESD Bottles SDS, rrlotion.com/msds/
Supplied by: R&R Lotion, Scottsdale, AZ, since 1983 · FDA registered facility No. 3004167955
GSA: MAS contract 47QSMS24D0078: WB-8-ESD, WB-16-ESD
