2oz. Flux ESD Dispenser, Pen Tip
2oz. Flux ESD Dispenser, Pen Tip - Image 2
2oz. Flux ESD Dispenser, Pen Tip - Image 3
2oz. Flux ESD Dispenser, Pen Tip - Image 4
2oz. Flux ESD Dispenser, Pen Tip - Image 5
2oz. Flux ESD Dispenser, Pen Tip - Image 6
2oz. Flux ESD Dispenser, Pen Tip - Image 7

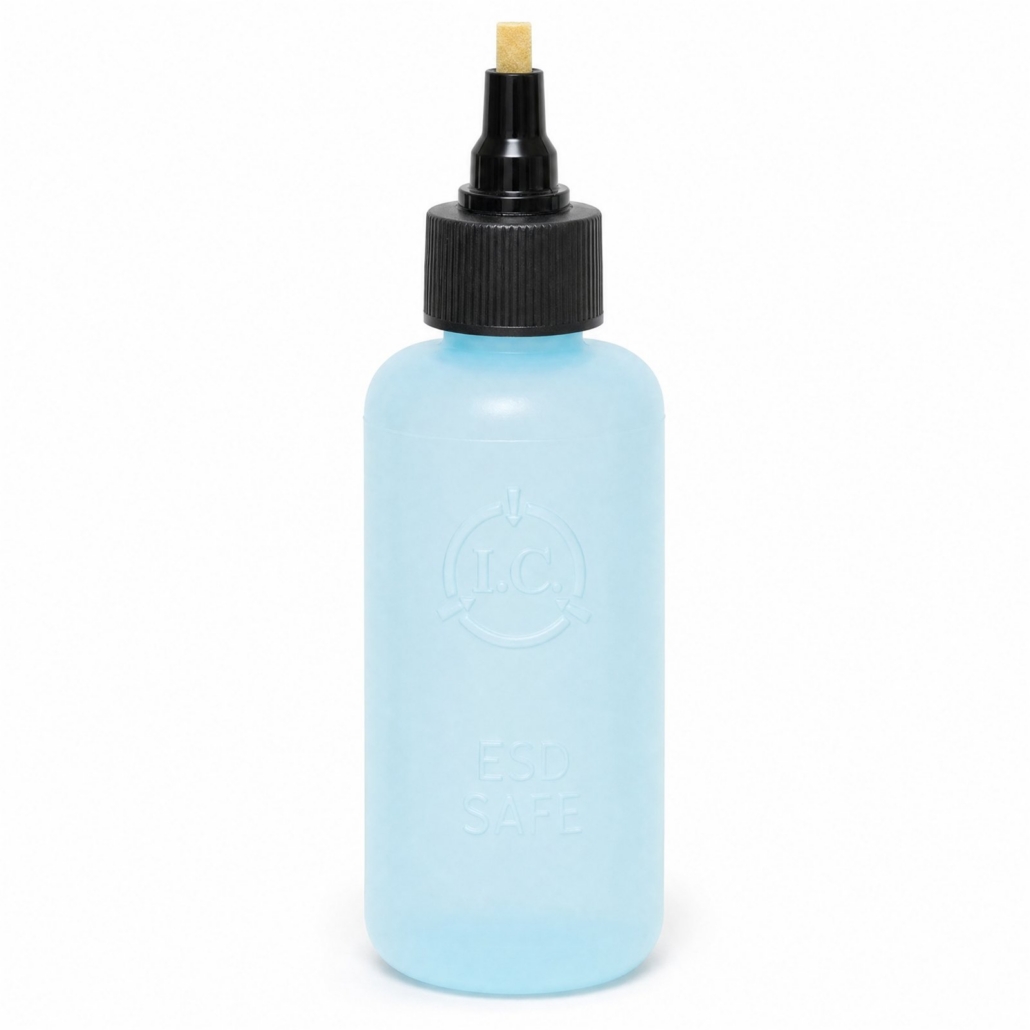

2oz. Flux ESD Dispenser, Pen Tip

$16.99

Earn 16 Points when you buy this item.

All of our Clean Room blue static dissipative solvent containers have an average surface resistivity of 10^9 to 10^10.

Title Range Discount
Buy 6-11: 5% off 6 – 11 5%
Buy 12-23: 10% off 12 – 23 10%
Buy 24+: 12% off 24 + 12%

Ships in 1–2 business days. Order by 2 PM Arizona time.

Request a free sampleCrew, distributor or GSA pricing

Government buyer? Buy on GSA Advantage → MAS contract 47QSMS24D0078

  • Made in the USAScottsdale, AZ, since 1983
  • FDA registered facilityNo. 3004167955
  • GSA contract holderGSA MAS contract 47QSMS24D0078
SKU: FD-PEN-ESD
Soldering iron tip being re-tinned in a small tin beside a soldering station

Static control at the bench

Built for a clean spread of flux

A 2 oz blue flux bottle with a chiseled pen tip, for a precise, consistent spread of flux across pads and joints. Static dissipative, so it stays at the solder station.

01
Chisel pen tipThe chiseled tip grips the Luer-lock hub and seals for dispensing.
02
Controlled spreadA precise, consistent spread of flux instead of a bead.
03
Static dissipativeAverage surface resistivity of 109 to 1010 ohms/sq, in translucent ESD blue so you can see what is inside.

At a glance

2 oz pen-tip flux dispenser

2 ozFD-PEN-ESD with a chiseled pen tip. Case of 50.
MDPETranslucent ESD blue, molded with an antistatic additive free of amines and amides
109–1010Ω/sq average surface resistivity. Average static decay 0.5 s at 40% RH.
Spare tipsReplace worn tips with FD-PEN-TIP chisel pen tips, 5 per pack.

Who uses it

Where it gets used

Electronics →
Electronics technician in a blue smock and wrist strap inspecting circuit boards under a microscope
ElectronicsAssembly and rework benches
 Line operator in safety glasses working lotion into her hands on the production floor
General manufacturingStatic-sensitive production
 Cleanroom technician in a hooded suit, safety glasses and wrist strap dispensing from a small bottle at an electronics bench
Bio-scienceCleanrooms
 Soldering iron tip being re-tinned in a small tin beside the soldering station
ElectronicsSolder stations

Questions buyers ask

FAQ

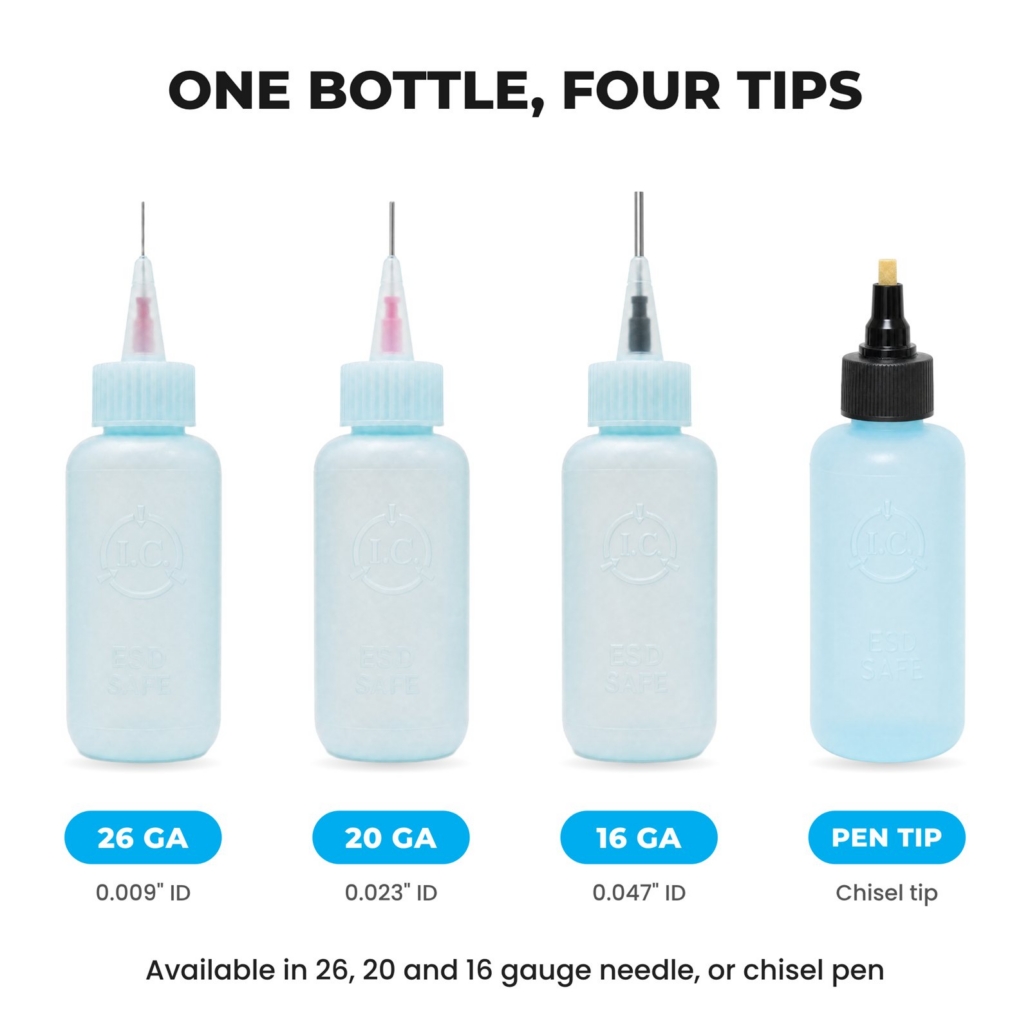

Pen tip or needle tip?
The pen tip spreads flux over an area. The needle-tip dispensers put down a bead in 26, 20 or 16 gauge.
Which fluxes can I use?
It is compatible with flux, no-clean, water-soluble, rosin and acid solutions.
Can I replace the tip?
Yes. FD-PEN-TIP replacement chisel pen tips come 5 per pack.
What makes it static dissipative?
It is molded from MDPE with an antistatic additive that contains no amines or amides. Average surface resistivity is 109 to 1010 ohms/sq, with an average static decay of 0.5 seconds at 40% relative humidity. It supports an ANSI/ESD S20.20 program; it does not certify a workstation on its own.
Can I get samples, pricing or buy through GSA?
Yes. Request a sample, ask about distributor and case pricing, or buy FD-PEN-ESD through GSA MAS contract 47QSMS24D0078.

The details

A clean, controlled spread of flux

The I.C. ESD Flux Dispenser with a pen tip is a 2 oz squeeze bottle for spreading flux across pads and joints on electronics assembly, rework and repair benches. The chiseled pen tip gives a precise, consistent spread instead of a bead.

The tip grips tightly onto the Luer-lock hub and seals for dispensing, and it works with flux, no-clean, water-soluble, rosin and acid solutions. The blue bottle is static dissipative, with an average surface resistivity of 10⁹ to 10¹⁰ Ω/sq and an average static decay of 0.5 seconds at 40% RH, so it can stay at the solder station.

Order FD-PEN-ESD, 50 per case, also on GSA MAS contract 47QSMS24D0078. Replacement FD-PEN-TIP chisel tips come 5 per pack. I.C. ESD bottles are molded from MDPE compounded with an ESD additive that gives them their blue tint and static dissipative property, and they are supplied by R&R Lotion of Scottsdale, Arizona, since 1983.

Features & benefits

  • Chisel pen tipGrips tightly onto the Luer-lock hub and seals for dispensing.
  • Application controlA clean, controlled spread of flux.
  • Flux compatibleWorks with flux, no-clean, water-soluble, rosin and acid solutions.
  • Replaceable tipsSwap worn tips with FD-PEN-TIP, 5 per pack.
  • Static dissipativeAverage surface resistivity of 10⁹ to 10¹⁰ Ω/sq, with an average static decay of 0.5 seconds at 40% RH.
  • Supports an S20.20 programSupports an ANSI/ESD S20.20 program. The bottle does not certify a workstation on its own.
  • Amine and amide freeThe antistatic additive contains no amines, amides or ethoxylated tertiary amine, the agent used in many other antistatic bottles.
  • Durable MDPEMedium-density polyethylene is durable and chemical resistant.
  • Grip-right materialFlexible walls give precise, even resistance in the hand.
  • Leak-proof fitEach molding is fitted to its matching top and seals when closed.
  • Into the ESD areaBring liquids and supplies into static-sensitive areas in a static dissipative container, and keep them within reach at the workstation.
  • ESD blue, translucentThe ESD blue tint is easy to spot, and the translucent wall shows contents and fill level.
  • Clean plasticMade with no BPA, PBDE, phthalates or heavy metals.
  • Non-stick surfaceContents release cleanly from the plastic surface.
  • Odor resistantDoes not hold trace odors or fragrances left by solvents and other chemicals.
  • Top-rack washableWash on the top rack of a dishwasher and reuse.
  • RecyclableThe material is formulated to be recyclable and reusable.

Uses (from the label)

  • Cleanrooms and sterile environments
  • Spreading flux onto circuit boards
  • Storing flux or solvents
Free ofBPAPhthalatesPVCPBDEHeavy metalsAmines and amides

Sizes & case packs

SizePart no.Per case
2 oz flux dispenser, chiseled pen tipFD-PEN-ESD50

Directions for use

  1. Unfasten the nozzle from the base and fill the bottle with flux.
  2. Tightly refasten the plug and draw the chiseled tip through the nozzle.
  3. Fasten the nozzle and squeeze to dispense flux.

Applications

Electronics manufacturingCleanroomsStatic-sensitive environmentsSemiconductor and quality labsBio-science labsAerospace and defense

Testing on file

  • Static decay, 5 kV at 40% RHAverage 0.05 s to the 1% cutoff (min 0.04 s, max 0.07 s); 0.03 s average to 10%.
  • Surface resistivity, ASTM D2571.97 × 10¹⁰ Ω/sq average at 100 V and 40% RH.
  • Surface resistance, 100 V at 40% RH5.51 × 10⁸ Ω average (1% cutoff).
  • Static decay, packaging material5 kV at 15% RH: PVC sleeve 0.35 s, PE foam 0.17 s, PS foam 0.17 s.
  • Solvent residue, seven-day exposureTCE, MEK and IPA: no color or physical change; water pH unchanged (about 5.9).
  • Electro-Tech Systems, 2015Surface resistivity at 40% RH (ASTM D257 / ESD S11.11) in the static dissipative range; static decay at 12% RH (Mil-Std-3010C Method 4046) to the 1% cutoff in about 0.01 s.

Product specs

Product type
Static dissipative bottle (hardware)
Material
MDPE with an antistatic additive (amine and amide free)
Color
ESD blue, translucent
Surface resistivity
10⁹ to 10¹⁰ Ω/sq (average)
Static decay
0.5 s average at 40% RH
Flux compatibility
Flux, no-clean, water-soluble, rosin and acid solutions
ESD program
Supports an ANSI/ESD S20.20 program; does not certify a workstation on its own
Standards (per TDS)
Exceeds MIL-B-81705 and NFPA-56A (FTMS 101, Method 4046); tested to ESD ADV 11.21; meets EIA 625; helps meet ANSI/ESD S4.1; DOD-HDBK-263
Food-contact material
MDPE and additive comply with 21 CFR 177.1520, 178.2010, 178.3297 and 178.3120
Chemical compatibility
See the ESD Bottle Chemical Resistance Chart, rrlotion.com/esd-bottle-chemical-resistance-chart/
Flammable liquids
Not ATEX rated
Regulatory lists
Prop 65, TSCA, SARA, REACH, RoHS: no known substances
Shelf life
At least 24 months from manufacture. Some ESD bottles degrade over time depending on the solvent and frequency of use.
Cleaning
Top rack of a dishwasher
SDS
ESD Bottles SDS, rrlotion.com/msds/
Supplied by
R&R Lotion, Scottsdale, AZ, since 1983 · FDA registered facility No. 3004167955
GSA
MAS contract 47QSMS24D0078: FD-PEN-ESD
